Simload Gallery

Simload Types

• A system Simload type 0 ("System") is used to collect system information, log user activities or show display settings.
• A singular Simload type 1 ("Primary") is an individual test scenario with the focus on an individual user. Each Primary Simload scenario highlights a specific graphic or multimedia format.
• A blended Simload type 2 ("Persona") is a sequence of chained or overlayed user activities, orchestrated in such a way they generate the characteristic behavior and load pattern of a predefined interactive user type or persona.
• A score Simload type 3 ("Score") runs test applications and measures predefined system metrics used to produces a number (= score) that represents the performance. Typically, each score Simload is associated with a specific aspect of a digital workplace.

Free Simloads included in the Base Installation Package

Thumbnail	Simload Type	Description
	System Light user type SL0-System folder	SL0-TestScreen Open an animated test pattern screen and save system information in the EUCScore\Results folder. The system information can be used to document the system under test.
	Primary Light user type SL1-Base folder	SL1-NotepadEdit Open Notepad2 and start writing a novel with random type speed. The Notepad2 executable is located in the EUCScore\Data\Bin\Notepad2\ folder.

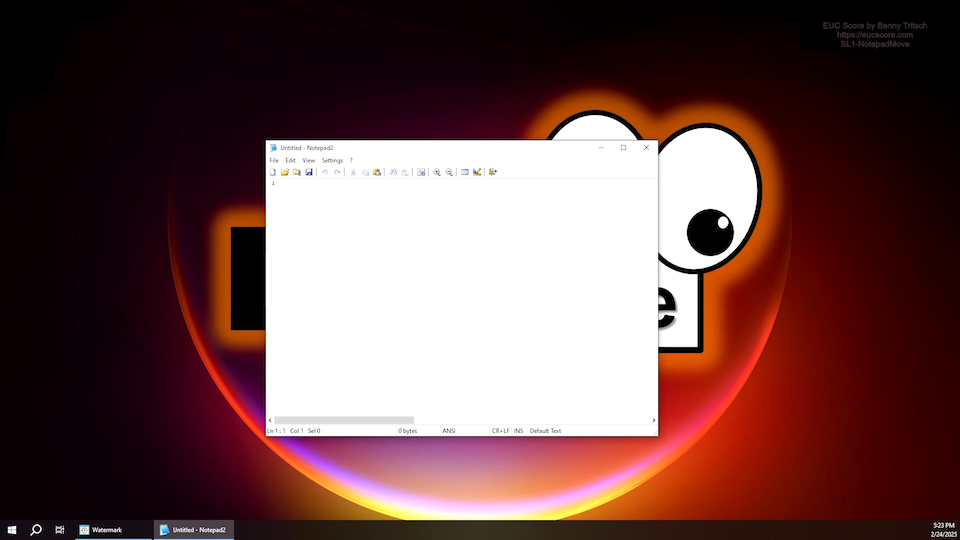

	Primary Light user type SL1-Base folder	SL1-NotepadMove Open Notepad2 and move the application window randomly across the screen. The Notepad2 executable is located in the EUCScore\Data\Bin\Notepad2\ folder.
	Primary Light user type SL1-Base folder	SL1-WordpadScroll (deprecated) Open local DOCX file with PNG images in Microsoft Wordpad and randomly move pages up and down every second. NOTE: WordPad will be removed from all editions of Windows starting in Windows 11, version 24H2 and Windows Server 2025.
	Primary Light user type SL1-JPEGView folder	SL1-JPEGViewStatic Open JEPG image in JEPG View. The executable is located in the EUCScore\Simloads\SL1-JPEGView\Bin\JPEGView64\ folder. NOTE: This is the most basic Simload as it includes neither animations nor user interactions.
	Primary Medium user type SL1-JPEGView folder	SL1-JPEGViewAnim Open animated GIF image in JEPG View. The executable is located in the EUCScore\Simloads\SL1-JPEGView\Bin\JPEGView64\ folder.
	Primary Medium user type SL1-WMPlayer folder	SL1-WMPlayer480pMP4 (deprecated) Open local 480p MP4 video in Windows Media Player, switch from windowed to fullscreen mode. NOTE: WMPlayer as a standalone application has been discontinued, but Windows 11 includes a compatibility feature known as “Windows Media Player Legacy.”
	Persona Light user type SL2-Base folder	SL2-Base Foreground app: SL3-AppDialog Background app: SL1-JPEGViewAnim
	Persona Medium user type SL2-Author folder	SL2-Author Foreground app: SL1-NotepadEdit Background app: SL1-WMPlayer480pMP4
	Score All user types SL3-Score folder	SL3-AppDialog Windows performance test. Launch Notepad2 and use the keyboard shortcuts Ctrl-O to open and Alt+F4 to close the File Open dialog in quick succession. Measure the time it takes to open the dialog box.
	Score All user types SL3-Score folder	SL3-AppStart Windows performance test. Measure the time it takes to open Notepad2, resize it and move it to a different place on the screen. Repeat these test steps until the Simload runtime is up.
	Score All user types SL3-Score folder	SL3-FractalsDragon GDI+ performance test. Measure the time to calculate and render a Dragon fractal curve, a member of a family of self-similar fractal curves approximated by a recursive method. The underlying recursive function is called inside a single thread.
	Score All user types SL3-Score folder	SL3-FractalsPythagoras GDI+ performance test. Measure the time to calculate and render a Pythagoras fractal tree, a plane fractal constructed from squares. The procedure to construct the tree elements is called inside a single thread and is applied recursively.

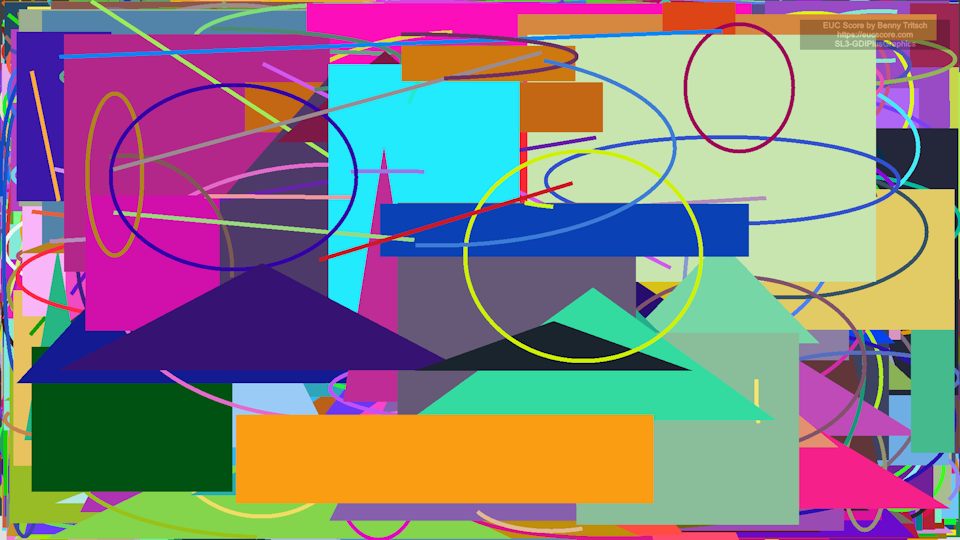

	Score All user types SL3-Score folder	SL3-GDIPlusRect GDI+ performance test. Measure the time it takes to paint 10,000 GDI+ rectangles with random location, size and color. Repeat until the Simload runtime is up.
	Score All user types SL3-Score folder	SL3-IOPS Storage read/write performance test. Measure the time to read five EUC Score data files from EUCScore\Data and write them 100 times to four different user profile folders: User profile root, AppData\Roaming, AppData\Local, and AppData\Local/Temp.
	Score All user types SL3-Score folder	SL3-UserProfileLarge Storage write performance test. Create an array in memory with 50 strings, each containing 600 characters. Randomly read strings from the array to create 20 files with 15000 lines each. Store files across four user profile folders (root, roaming, local, temp).

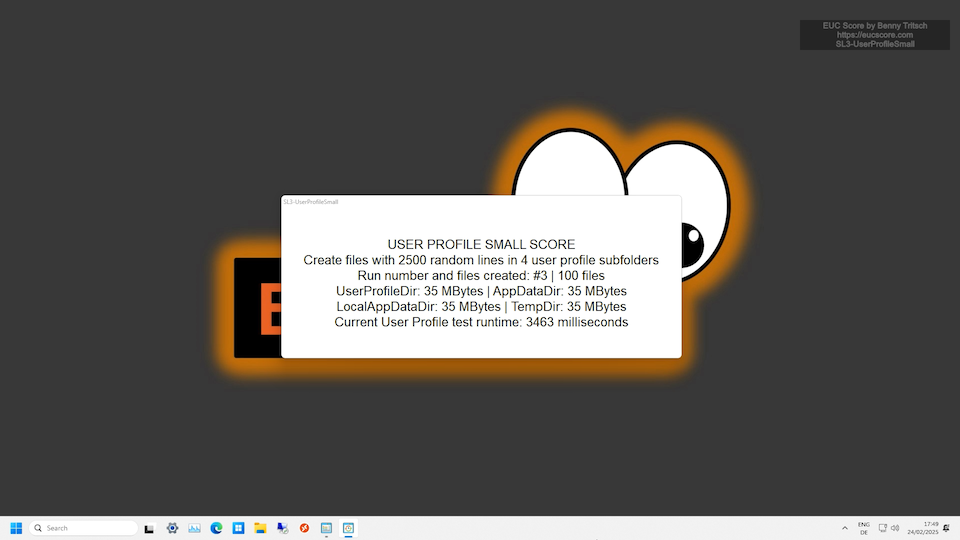

	Score All user types SL3-Score folder	SL3-UserProfileSmall Storage write performance test. Create an array in memory with 50 strings, each containing 60 characters. Randomly read strings from the array to create 100 files with 2500 lines each. Store files across four user profile folders (root, roaming, local, temp).

Simloads included in the Enterprise Installation Package

Thumbnail	Simload Type	Description
	Primary Heavy user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeAquariumWebGL, SL1-ChromeAquariumWebGL Open the WebGL app Aquarium in the Edge or Chrome browser. Canvas: 1024 x 1024, number of fish: 500. Requires internet connection.
	Primary Heavy user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeCarVisualizer, SL1-ChromeCarVisualizer Open the Car Visualizer in the Edge or Chrome browser. Rotating the Ferrari California as fast as possible. Requires internet connection.
	Primary Medium user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeFishbowlHTML5, SL1-ChromeFishbowlHTML5 Open the local HTML5 Fishbowl page in the Edge or Chrome browser. The synthetic user adds or removes a fish every half second. No internet connection required.
	Primary Medium user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeHtmlScroll, SL1-ChromeHtmlScroll Open a local HTML document with PNG images in the Edge or Chrome browser. The synthetic user randomly moves pages up and down every second. No internet connection required.
	Primary Medium user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeMonsterHTML5, SL1-ChromeMonsterHTML5 Open the locally stored HTML5 Monster animation in the Edge or Chrome browser. No internet connection required.
	Primary Medium user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgePhotoGalleryJS, SL1-ChromePhotoGalleryJS Open a locally stored JPG image gallery in the Edge or Chrome browser. Image transitions with Ken-Burns effect implemented in JavaScript. No internet connection required.
	Primary Heavy user type SL1-MSEdge folder SL1-Chrome folder	SL1-EdgeWaterWebGL, SL1-ChromeWaterWebGL Open the WebGL Water page in the Edge or Chrome browser. After 5 seconds the synthetic user moves the ball in the pool. Requires internet connection.

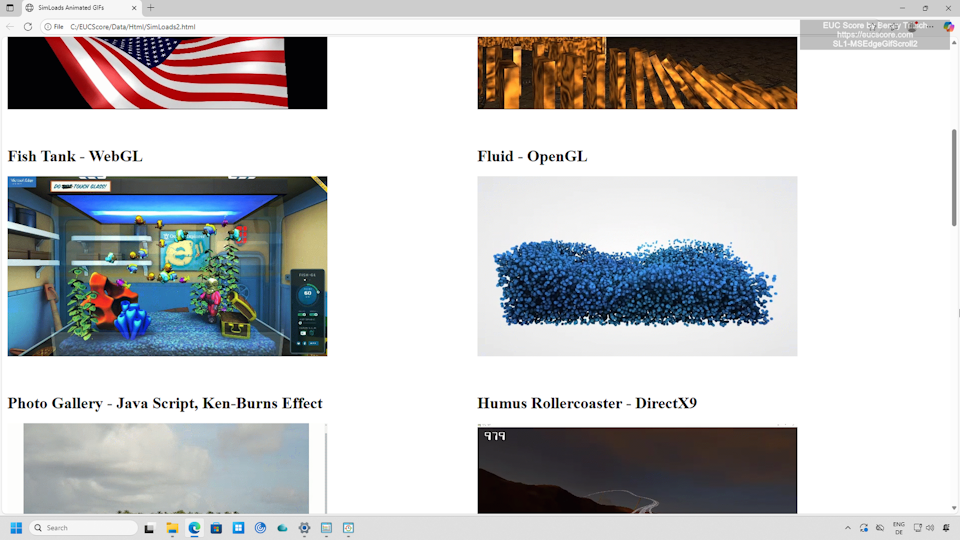

	Primary Medium user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeGifScroll, SL1-ChromeGifScroll Open a local HTML document with animated GIFs in the Edge or Chrome browser. The synthetic user randomly moves pages up and down every second. No internet connection required.
	Primary Medium user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeVideoConf4, SL1-ChromeVideoConf4 Open a locally stored video conference setup with four side-by-side video streams in the Edge or Chrome browser. No internet connection required.
	Primary Heavy user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeVideoConf6, SL1-ChromeVideoConf6 Open a locally stored video conference setup with six side-by-side video streams in the Edge or Chrome browser. No internet connection required.
	Primary Heavy user type SL1-MSEdge folder SL1-Chrome folder	SL1-MSEdgeVideoGrid9, SL1-ChromeVideoGrid9 Open a locally stored 3x3 video grid setup with nine side-by-side video streams in the Edge or Chrome browse. No internet connection required.
	Primary Medium user type SL1-WMPlayer folder	SL1-WMPlayer720pMP4 (deprecated) Open a local 720p MP4 video in the Windows Media Player. The syntetic user presses Alt+2 after half the runtime to switch from windowed to fullscreen mode. NOTE: WMPlayer as a standalone application has been discontinued.
	Primary Medium user type SL1-WMPlayer folder	SL1-WMPlayer720pWMV (deprecated) Open a local 720p WMV video in the Windows Media Player. The syntetic user presses Alt+2 after half the runtime to switch from windowed to fullscreen mode. NOTE: WMPlayer as a standalone application has been discontinued.
	Primary Heavy user type SL1-WMPlayer folder	SL1-WMPlayer1080pMP4 (deprecated) Open a local 1080p MP4 video in the Windows Media Player. The syntetic user presses Alt+2 after half the runtime to switch from windowed to fullscreen mode. NOTE: WMPlayer as a standalone application has been discontinued.
	Primary Heavy user type SL1-WMPlayer folder	SL1-WMPlayer1080pWMV (deprecated) Open a local 1080p WMV video in the Windows Media Player. The syntetic user presses Alt+2 after half the runtime to switch from windowed to fullscreen mode. NOTE: WMPlayer as a standalone application has been discontinued.
	Primary Light user type SL1-Adobe folder	SL1-AcrobatReader Open the PDF document in Acrobat Reader and randomly move pages up and down every second. IMPORTANT: Requires Adobe Acrobat Reader.
	Primary Light user type SL1-MSOffice folder	SL1-MSOPptSimple Open a local presentation in Microsoft PowerPoint and scroll randomly. IMPORTANT: Requires Microsoft Office.
	Primary Light user type SL1-MSOffice folder	SL1-MSOWordSimple Open a local document with PNG images in Microsoft Word and randomly move pages up and down. IMPORTANT: Requires Microsoft Office.
	Primary Medium user type SL1-MSOffice folder	SL1-MSOWordGif Open a local document with animated GIFs in Microsoft Word and randomly move pages up and down. IMPORTANT: Requires Microsoft Office.
	Primary Heavy user type SL1-Humus folder	SL1-BSPBlendingDX11 Open the local Humus BSP Blending DirectX 11 application. The synthetic user moves randomly in the scene. IMPORTANT: Requires installation of the DirectX June 2010 Redistribution package.
	Primary Power user type SL1-Humus folder	SL1-ClothOpenGL Open the local Humus Cloth OpenGL application. Run cloth animation with moving light sources. Requires a physical or virtual GPU.
	Primary Power user type SL1-Humus folder	SL1-DominoOpenGL Open the local Humus Domino OpenGL application. Simulated domino bricks chain reaction. Requires a physical or virtual GPU.
	Primary Heavy user type SL1-Humus folder	SL1-RollercoasterDX9 Open the local Humus Rollercoaster DirectX 9 application. Simulated rollercoaster ride.
	Primary Power user type SL1-Humus folder	SL1-ShadingDX11 Open the local Humus Cluster Shading DirectX 11 application - shading simulation IMPORTANT: Requires installation of the DirectX June 2010 Redistribution package.
	Primary Power user type SL1-Geeks3D folder	SL1-FurMarkOpenGL Open the locally stored Geeks3D GpuTest FurMark (OpenGL 2.1/3.0). Requires a physical or virtual GPU.
	Primary Power user type SL1-Geeks3D folder	SL1-GiMarkOpenGL Open the locally stored Geeks3D GpuTest GiMark (OpenGL 3.3). Requires a physical or virtual GPU.
	Primary Power user type SL1-Geeks3D folder	SL1-PixMarkOpenGL Open the locally stored Geeks3D GpuTest PixMark Piano (OpenGL 2.1/3.0). Requires a physical or virtual GPU.
	Primary Power user type SL1-Geeks3D folder	SL1-Plot3dOpenGL Open the locally stored Geeks3D GpuTest Plot3D (OpenGL 2.1/3.0). Requires a physical or virtual GPU.
	Primary Power user type SL1-Geeks3D folder	SL1-TessMarkOpenGL Open the locally stored Geeks3D GpuTest TessMark (OpenGL 4.0). Requires a physical or virtual GPU.
	Primary Power user type SL1-Cinebench folder	SL1-CinebenchOpenGL Run the Maxon Cinebench R15 application, a free cross-platform OpenGL test suite.
	Primary Heavy user type SL1-GoogleEarth folder	SL1-GoogleEarthDX9 Run Google Earth in DirectX mode and open sightseeing tour DarcoTour.kmz. Requires Google Earth.
	Persona Light user type SL2-TaskWorker folder	SL2-TaskWorker Foreground apps: SL1-MSEdgeHtmlScroll, SL1-WordpadScroll, SL1-NotepadEdit Background app: SL1-JPEGViewStatic
	Persona Heavy user type SL2-PowerUser folder	SL2-PowerUser Foreground apps: SL1-MSEdgeWaterWebGL, SL1-WordpadScroll, SL1-AcrobatReaderScroll, SL1-WMPlayer720pMP4 Background apps: SL1-MSEdgePhotoGalleryJS, SL1-ChromeFishbowlHTML5, SL1-CopyDataToProfile (IOPS)
	Persona Heavy user type SL2-DirectXUser folder	SL2-DirectXUser Foreground apps: Sl1-RollercoasterDX9, SL1-GoogleEarthDX9, SL1-ShadingDX11, SL1-BSPBlendingDX11, SL1-MSEdgeVideoGrid9 Background apps: SL1-MSEdgePhotoGalleryJS, Sl1-MSEdgeMonsterHTML5, SL1-CopyDataToProfile
	Persona Heavy user type SL2-MediaUser folder	SL2-MediaUser Foreground apps: SL1-AcrobatReader, SL1-MSEdgeCarVisualizer, SL1-MSEdgeFishbowlHTML5, SL1-WMPlayer1080pMP4, SL1-MSEdgeGifScoll Background apps: SL1-MSEdgePhotoGalleryJS, SL1-MSEdgeMonsterHTML5, SL1-CopyDataToProfile
	Persona Power user type SL2-OpenGLUser folder	SL2-OpenGLUser Foreground apps: SL1-ClothOpenGL, SL1-DominoOpenGL, SL1-CinebenchOpenGL, SL1-FurMarkOpenGL Background apps: SL1-MSEdgePhotoGalleryJS, SL1-MSEdgeMonsterHTML5, SL1-CopyDataToProfile
